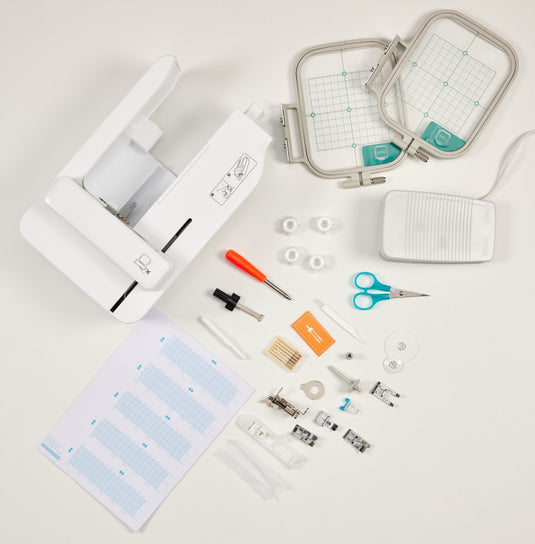

Innov-is M380D sewing, quilting and embroidery machine
Fall under the spell of the Innov-is M380D.
Fun, easy-to-use and packed full of features, take a magical crafting adventure with our cute new Disney embroidery, sewing and quilting machine.
Stitch excitement into everything you make on the Innov-is M380D sewing, quilting and embroidery machine. There are 200 built-in designs, of which 65 are Disney. Plus, with 181 built-in stitches, including 10 buttonholes, your projects will always be truly original.
Add a personal touch with 11 built-in embroidery and 4 lettering fonts. From monograms to feel good slogans, it’s time to express yourself!
Take that individuality even further with My Custom StitchTM. Use the colour LCD touchscreen to design your own stitches or edit the built-in designs. Save them to your machine for future use.
With on-screen editing you can take your creativity to infinity and beyond - flip, rotate, change the colour and repeat designs.
With a central panel including needle up/down button, slide speed controller, thread cutter and start/stop button, precision control is at your fingertips.
Reach for the sky and take your crafting even further. With wireless LAN connectivity you can download additional designs, or connect to Artspira, our new creative hub.
Key Features
✓ 200 built-in embroidery designs, including 65 Disney designs
✓ 11 built-in fonts
✓ 100 x 100 mm embroidery area
✓ Colour touchscreen
✓ Advanced needle threader
✓ Wireless LAN connected
✓ 181 sewing stitches, including 10 buttonholes
✓ 4 lettering fonts
✓ Super sewing features
✓ 160 mm (6.2”) workspace
✓ Hard case
Advanced needle threading system
No more stress when threading. Follow the thread guide, and use the needle threader lever with one finger.
3.7’’ colour LCD touch screen
Manage all the functions with a simple touch of the easy-to-read, 3.7” LCD high resolution display (432 x 240 pixels). Includes icons and 15 languages.
Super bright LED Light
A bright, but gentle-on-the-eye light, makes it easier to work on dark fabrics.
Convenient controls
For ease of use, all operating buttons are on one convenient panel - thread cutter, needle position up/down, Start/Stop function.
Bobbin winding system
Quick and easy way to wind lower thread! Just load the bobbin on the winder and the thread guide will show you which way to go.
Quick-set bobbin
Just drop in a full bobbin and you’re ready to go.
Thread sensor
The Innov-is M380D is equipped with upper and lower thread sensors that warn when thread is broken or has run out.
200 Built-in embroidery designs, including 65 Disney designs
Stitch excitement into every piece of embroidery on the Innov-is M380D with 200 built-in designs, of which 65 are Disney.
11 Embroidery fonts
Add a personal touch with 11 built-in embroidery fonts. From monograms to feel good slogans, it’s time to express yourself!
100 x 100 mm Embroidery area
Just set the embroidery unit and frame, select the pattern and you’re ready to embroider. Additional frames are also available separately.

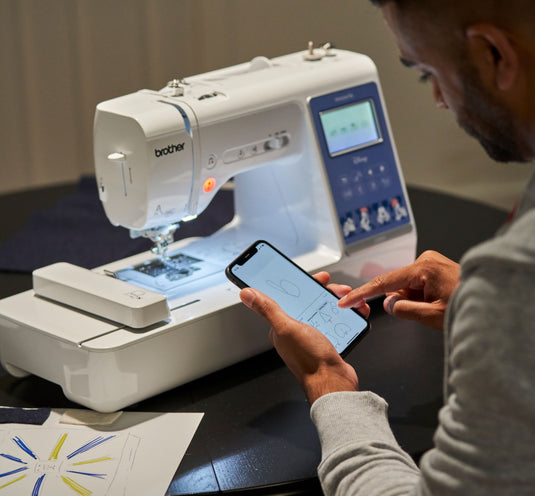

Wireless LAN connectivity
Reach for the sky and take your crafting even further. With wireless connectivity you can transfer additional designs using Design Database Transfer (for Windows devices only), or connect to Artspira, our new creative hub. Here you will find free designs and projects, or even draw your own custom designs.
USB port
Just insert a USB flash drive and load your embroidery design directly to the machine.
Combine embroidery patterns
Several designs can be showed at same time by pressing “Add” button.
Built-in embroidery frame patterns
14 stitch types can be combined with 10 different frame shapes such as a circle or a square.

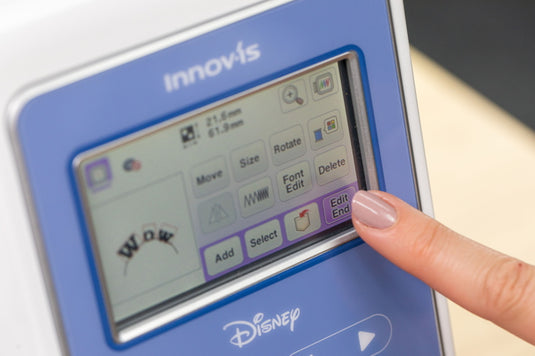

Editing on the screen
Powerful editing features include the layout, pattern rotation in 1°, 10° & 90°, mirror imaging and scaling between 90 - 120%.
Compatible with other manufacturers' thread
In addition to the Brother thread chart, the Innov-is M380D recognizes threads from three other manufacturers.
7 Point feed
Provides a smooth feeding action and superior stitch quality on any weight of fabric.
Free arm sewing
Remove the accessories storage compartment for free arm sewing. Sew small continuous items like armholes, cuffs etc with ease.
Convenient controls
For ease of use, all operating buttons are on one convenient panel - thread cutter, needle position up/down, Start/Stop function.
4 lettering styles (sewing)
Add different lettering styles for labels and monograming projects.
Automatic thread cutter
Cuts upper and lower thread automatically with the touch of a button.
181 Sewing stitches
Choose from 181 stitches built into the machine, giving you unlimited creativity. Also includes 10 one-step buttonhole styles.

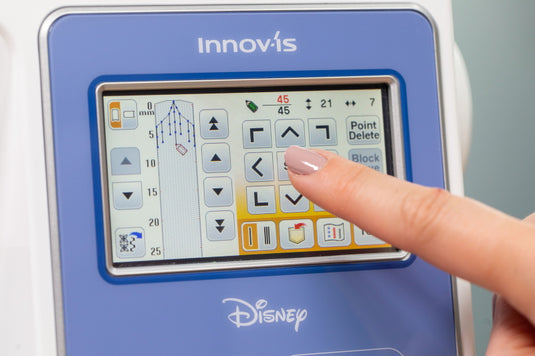

My Custom StitchTM
Design your own stitch patterns or edit and change the built-in template designs and save for future use.
Drop feed lever
Easy-to-switch lever to drop feed dogs for free motion embroidery and quilting.
Slide speed
Adjusts speed from slow to fast. This can also be set to alter stitch width whilst sewing for zig-zag stitches.
Needle stop position
Select whether the needle should be up or down when the machine stops. Useful for turning fabric, sewing corners or joining quilt pieces.
Hard case
Carefully protects the machine when not in use.
Automatic reverse/ reinforcement stitch
The machine automatically sews reverse/reinforcement stitches at the beginning and end of sewing.
Mirror function
For more stitch variety use this function to create a mirror image of your stitch pattern.
Repeated single sewing
Choose whether the stitch pattern will be sewn once or repeatedly.
Combining stitches
Create your own stitch patterns by combining different stitches.
Snap-on presser feet
Quickly and easily change presser feet.
| Embroidery Area in mm | 100 x 100 |
|---|---|
| Font Editing Functions/Multiple Lines and Alignment (L-C-R) | C |
| Font Size Selection (L-M-S) | Yes |
| Max Embroidery Speed (Stitches per Minute) | 400 |
| Number of Spool Stands | 1 |
| Pattern - Size, Change Rotation & Mirror | Yes |
| Realistic Preview of Patterns | Yes |
| Built-in Embroidery Frame Patterns | 140 (10 shapes x 14 stitch types) |
| Built-In Lettering Styles (Embroidery) | 11 |
| Built-In Patterns | 200 |
| Frames Included | 100 x 100 mm (4 x 4”) |
| Bobbin Work | Optional |
|---|---|
| Built-In Lettering Styles | 4 |
| Buttonholes | 10 |
| Circular Sewing | Optional |
| Combine stitches | Yes |
| Drop feed setting | Manual |
| Electronic slide speed control | yes |
| Extension Wide Table | Optional |
| Free arm sewing | Yes |
| Free Motion Embroidery Kit | Optional |
| Longer Feed Dog | Yes |
| Longer J-Foot | Yes |
| Max. Sewing Speed (Stitches per minute) | 850 |
| Mirror imaging | Yes |
| My Custom Stitch | Yes |
| Needle Positions | 15 |
| Needle Stop Position Control Up/Down | Yes |
| Repeated single sewing | Yes |
| Snap on Presser Feet System | Yes |
| Speed control customised for zigzag width | Yes |
| Workspace (cm) | 15.7 |
| Number of sewing stitches *incl. buttonholes | 181 |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
