**New Model**

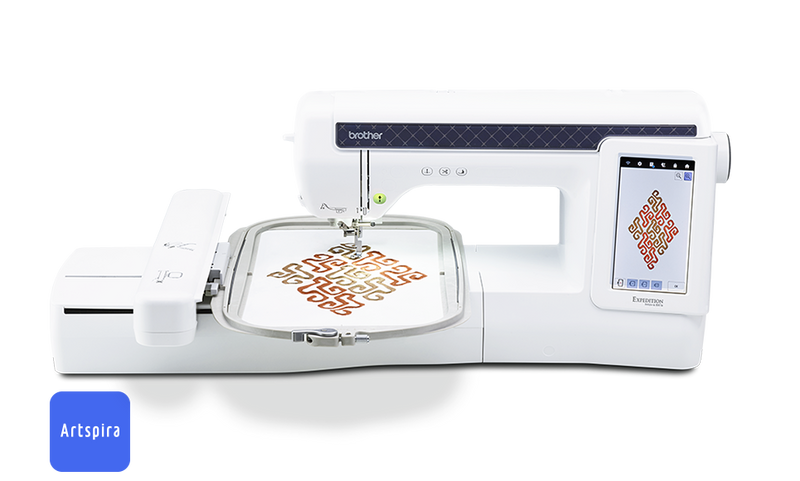

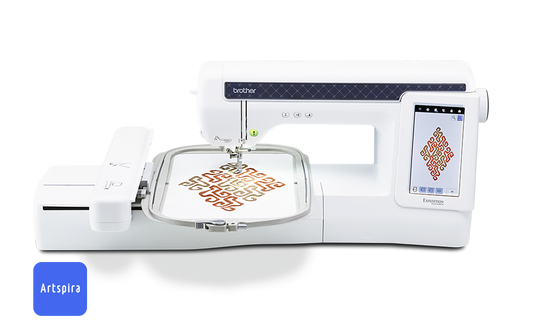

Brother Expedition BX1e Embroidery Machine
Every journey starts with a single stitch, so choose a machine that’s been built to go the distance. The Brother BX1e has been built to be durable, flexible, innovative and an embroidery partner you can rely on for the roads ahead. Follow the thread, begin the Expedition.
Embroidery has always been a journey, from the first idea to the final finish. Skills develop; confidence grows. Let your craft take you on an expedition of discovery with the Brother Innov-is BX1e embroidery machine.
Follow the thread and discover the Expedition’s embroidery capabilities. There are over 900 built-in embroidery patterns, frames and fonts that you can edit on the Expedition BX1’s large 7” colour LCD touchscreen. Expand your creative horizons with built-in 3D appliqué, crochet couching, French knot, crochet lace and in-the-hoop designs.
With the laser drop pointer and two-point positioning, precision comes as standard. The matrix copy function and appliqué creator make repeated motifs and patches quick work. Expedite your craft even further with colour sorting, auto stitch density adjustment (Stitch to Block) and programmable jump stitch cutting.
All this Brother innovation is packaged into a modern, sleek machine that’s both durable and user-friendly. Its sleek lines betray how much technology has been packaged within – advanced one-action needle threader, drop in bobbin, fully automatic upper thread tension, upper and lower thread sensors and much more.
With wireless connectivity, wherever you are you’ll never miss an update, keeping your Expedition BX1e completely current and always working hard for you. You can take your creative journey even further and connect to Brother’s mobile design app, Artspira or Brother’s embroidery digitising software programmes (additional purchase necessary).
And it’s all waiting for you to take the first stitch.
Follow the thread, begin your Expedition.

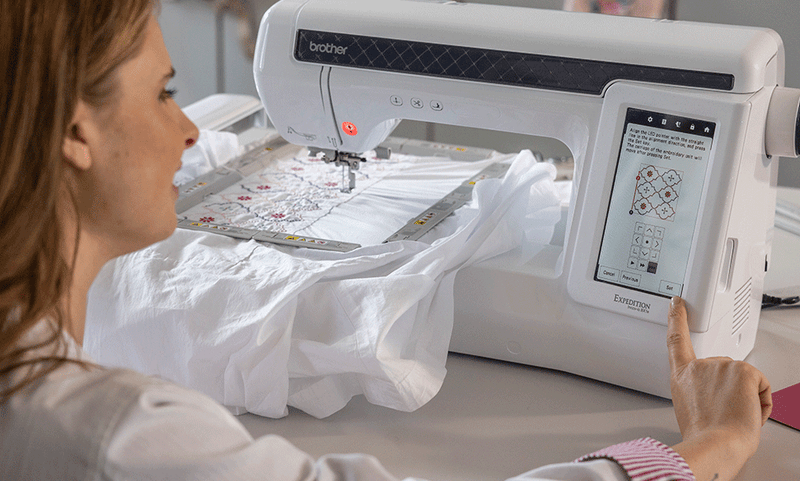

LCD display
Large and clear built in 7” LCD colour touch screen.
Stitching speed
Sew and embroider up to 850 stitches per minute.
Advanced one-action needle threading system
Simply follow the thread guide, lower the lever and the needle is threaded for you.
Bobbin winding
Enhanced bobbin winding with extra spool pin and thread cutter. Extra spool pin allows you to wind a new bobbin without removing the upper thread you’re working with.
Bobbin type
Quick set, drop in bobbin.
Thread tension
Fully automatic upper thread tension.
Thread sensors
Gives you a warning when your upper and lower threads are running low.
Thread cutter button
Trims upper and lower threads automatically.
LED lighting
Extra-bright LED lighting to illuminate your work area with a clean, natural light.
Intuitive user interface
Easy-to-use screen layout and realistic preview of selected embroidery patterns.
Start/stop button
Ergonomic large Start/stop button.
Presser foot up/down button
The presser foot up/down button is conveniently located on the front of the machine.
Auto presser foot setting
Automatic presser foot lift and extra high lift setting
Wireless
Wireless LAN capability enables connection to mobile apps like Artspira, My Stitch Monitor and to receive wireless updates.
USB connectivity
One high speed port.
Updates
Automatic software update capability.
Environment
Save energy with the Eco and Deep Sleep modes.
Multilingual operational languages
18 built-in languages.
Safety features
Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes.
Embroidery
Embroidery area
Generous 360 x 200mm/14 x 8” embroidery area.
Built-in designs
914 built-in embroidery designs, including 140 frames and 23 fonts.
Embroidery speed
Embroidery up to 850 stitches per minute.
LED pointer
Laser pointer for precise pattern placement.
Two-point positioning
Use the LED pointer to precisely align embroidery patterns along cuffs, edges, pockets and more.
Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 1, 10 and 90 degrees), drag and drop operation, zoom up to 300%.
Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.
Font sizes
S/M/L size for font designs.
Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.
Matrix copy function
Quickly make repeated designs with automatic colour sorting for fast stitch outs and fewer thread changes.
Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best placement repetition.
Automatic colour sorting
Machine automatically sorts colours for optimised stitching order and to minimise thread changes.
Thread trimming
Programmable jump stitch cutting.
Basting
Embroidery basting.
Colour change
Direct touch button for changing colours of embroidery patterns.
Resume function
Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.
Frame detection
Automatic embroidery frame size detection.
Included frames
Two (2) included embroidery frames: 360 x 200mm (14 x 8”) and 180 x 130mm (7 x 5”).
