Jack F5

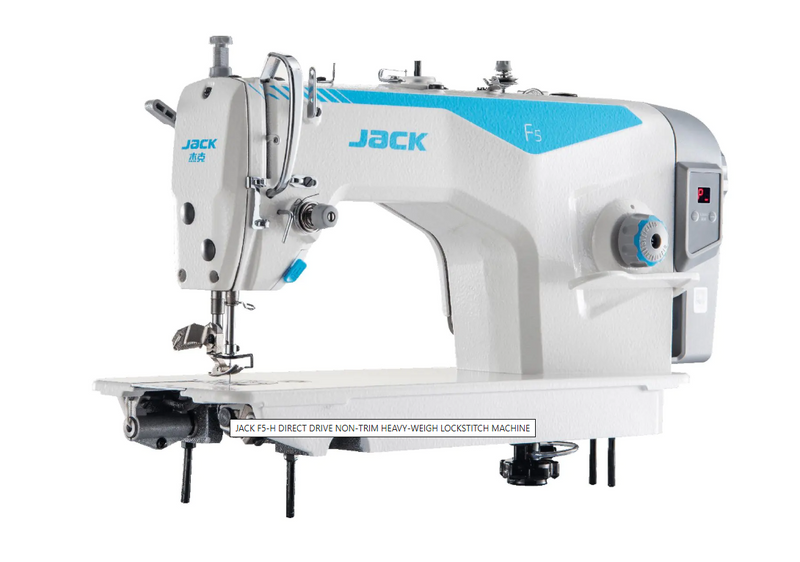

JACK F5-H DIRECT DRIVE NON-TRIM HEAVY-WEIGH LOCKSTITCH MACHINE
JACK F5-H DIRECT DRIVE NON-TRIM HEAVY-WEIGH LOCKSTITCH MACHINE
Jack F5-H
- Power Saving, Direct Drive, Heavy-Weight lockstitch Machine.
1-needle lockstitch machine for heavy-weight materials. Features a quiet, energy-efficient Direct Drive motor mounted in the head. The JACK F5 includes an easy-to-use control panel for speed adjustment, needle positioning, and restoring factory settings. Also comes with a built-in LED lamp with adjustable brightness.
Direct Drive Motor
It’s a compact, all-in-one solution with no safety risks. It operates silently, with no vibrations, thanks to a single-shaft motor design.
Low Consumption
Power use is nearly zero in standby mode, and significantly lower than other machines during sewing.
Needle Position
Determines if the needle stops at the top or bottom when the seam ends.
Adjustable Speed
Use the + and – keys to digitally adjust the speed, which is displayed in real time as you work.
Thread Cutter
A built-in blade lets you manually cut the thread at the end of a seam.
Integrated Keys
The stitch-by-stitch key allows for precise control. The built-in LED light has three adjustable brightness levels.
Integrated Bobbin Winder
Wind the bobbin while you are working, as soon as it is finished you will have the next one ready.
Voltage Protection
Worried about unstable currents? Don’t let voltage fluctuations damage your machine. Our voltage protector continuously monitors the incoming current and ensures it stays within a safe range.
Heavy Weight Materials
The machine can sew from heavy-weight material, adapting to all types of clothing.
Technical Specification
| Model | Jack F5-H |
|---|---|
| Application | Heavy-Weight |
| Needles | DBX5 18-21# |
| Number of threads | 2 |
| Stitch length (mm) | 5 |
| Presser foot lift (mm) | 5-13 |
| Sewing speed: stitches / min | 3500 |
| Volume (mm) | 635 x 245 x 550 |
| Weight (kg) | 31.5 / 38.2 |
